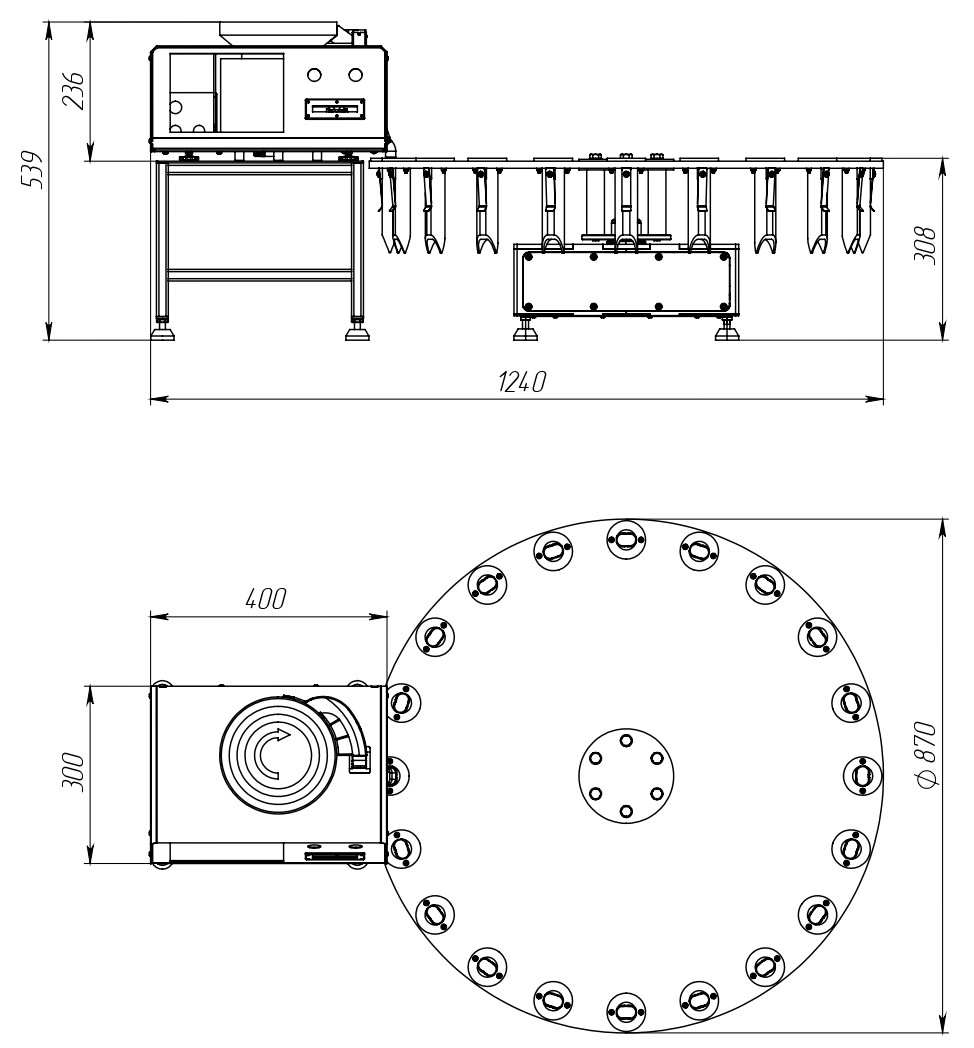

Technical Drawing zoom
Semi-Automatic Dosing Equipment

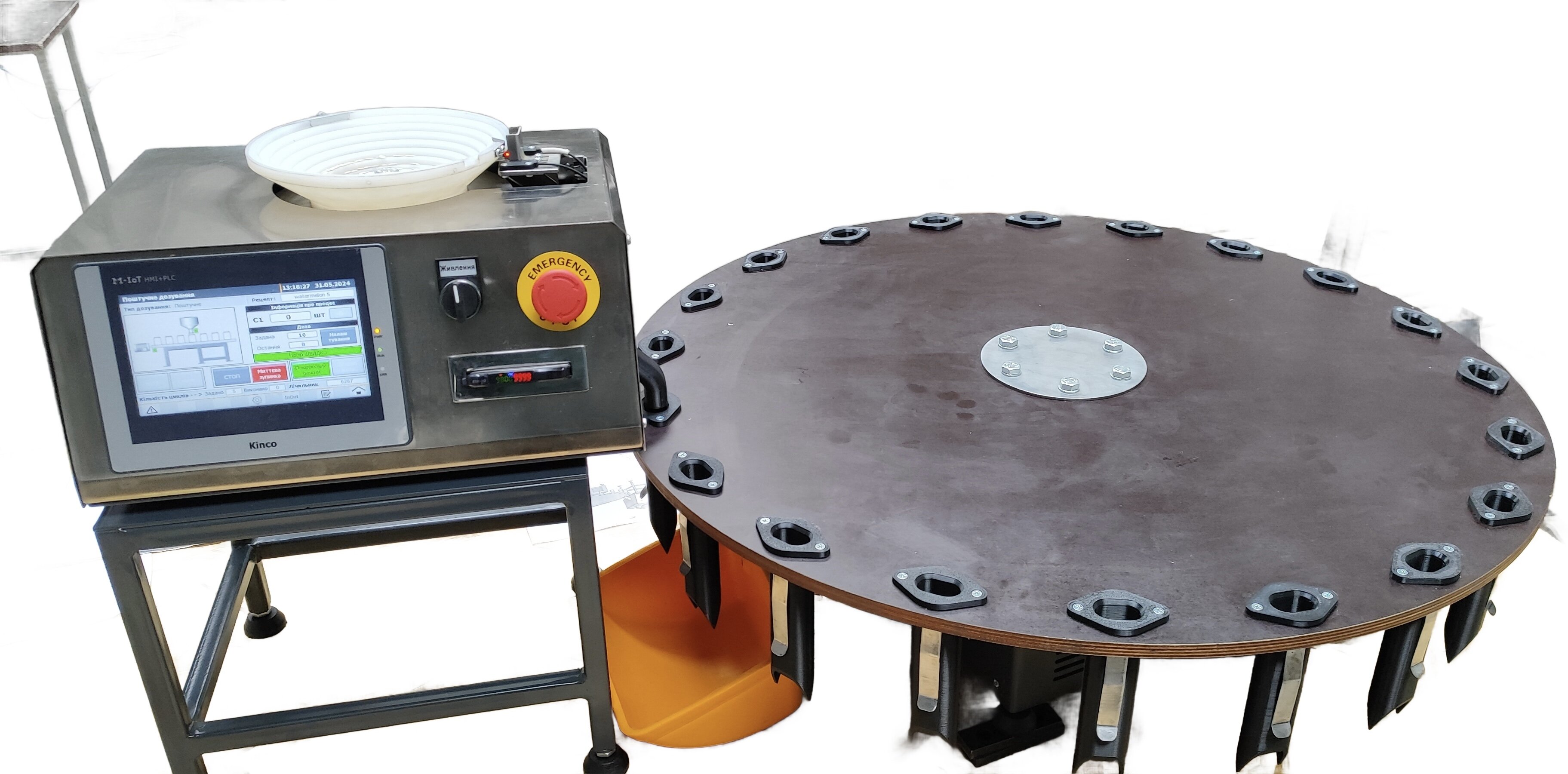

Semi-Automatic Machine for Dosing and Counting Seeds
Universal solution for precise packaging of small-piece products into ready containers (bags, jars, boxes). Combines the functions of high-precision scales and an intelligent counter — indispensable for the pharmaceutical and agricultural industries.
From $8,000
Request a Quote
Technical Specifications
| Semi-Automatic — Technical Data | |
|---|---|
| Dosing Modes | |
| Operating modes | Weight dosing and piece counting |
| Weight dosing range | From 0.2 g to 20 g |
| Discreteness (accuracy) | 0.01 g |
| Piece counting | From 1 piece (seeds, tablets, small parts) |
| Construction | |
| Hopper | Vibro-hopper with conical bowl and sequential vibro-roller |
| Sensor | High-sensitivity optical sensor |
| Control panel | LCD display with intuitive controls |
| Applications | |
| Agribusiness | Elite seeds, small-fraction products |
| Pharmaceuticals | Tablets, capsules, granules |
| Industry | Fasteners, hardware, small parts |
| Terms | |
| Warranty | 12 months |
| Service | Post-warranty service, metrological legalization |
Advantages of Design
Unique conical bowl
Special hopper shape ensures gradual product separation, excluding particle sticking and guaranteeing 100% counting accuracy.
Two modes
Counter mode (automatic stop at the set number) and weight mode (packaging by mass to the milligram).
Wide application
Agribusiness (elite seeds), Pharmaceuticals (tablets, capsules), Industry (fasteners, hardware).
Warranty & Service
12 months warranty, post-warranty service, metrological legalization.
