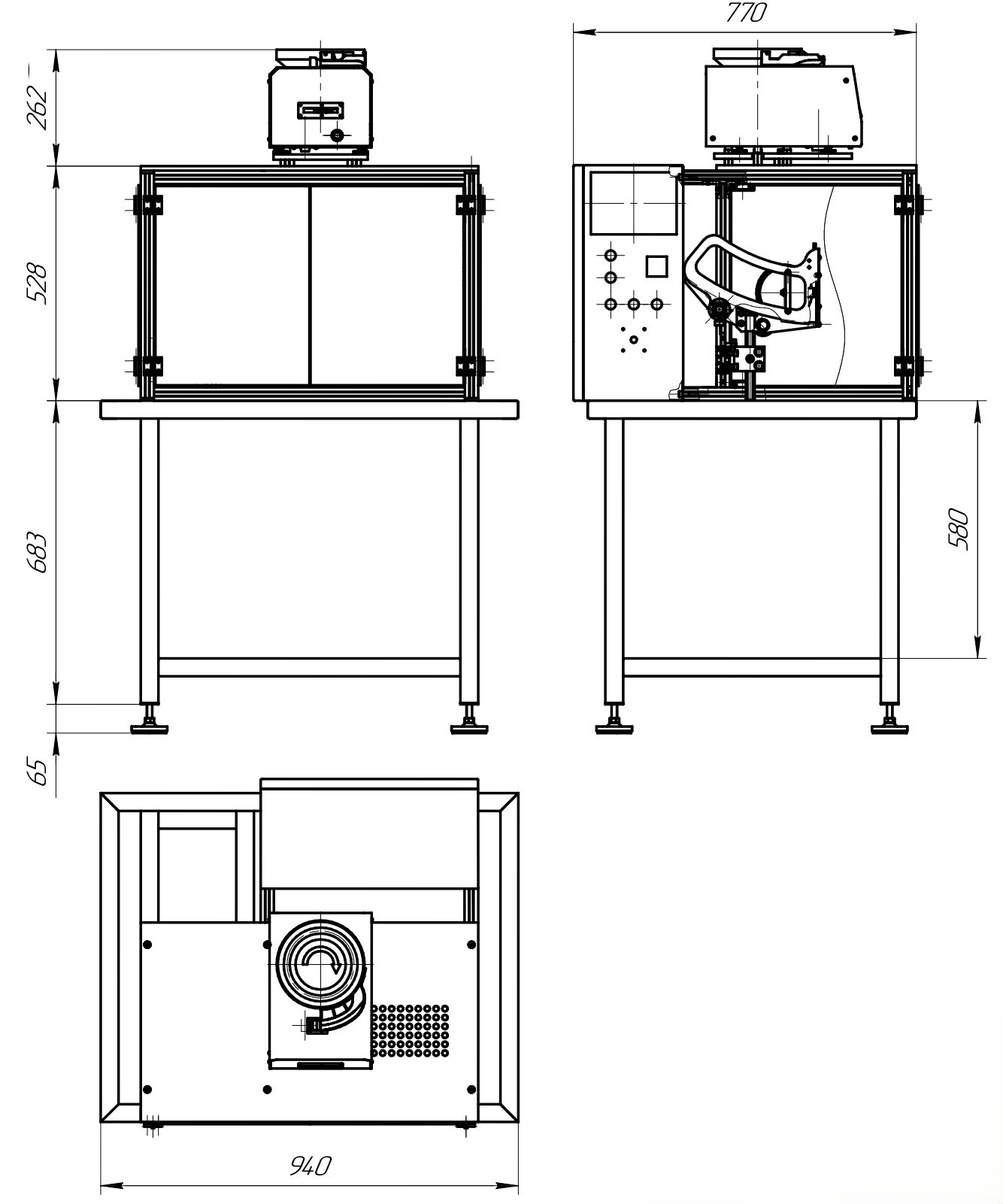

Technical Drawing zoom
Semi-Automatic Dosing Equipment

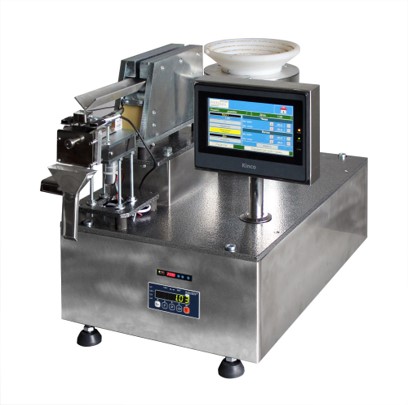

Semi-Automatic Machine for Seeds, Pills and Other Products to Pack into Outer Bags
Universal semi-automatic solution for precise counting and dosing of seeds, pills and small parts into bags or containers. Combines a vibrating feeding system, precision weighing and optical counting. Two operating modes: weight dosing and piece counting.
From $6,000
Request a Quote
Technical Specifications
| Semi-Auto 2 — Technical Data | |
|---|---|
| Dosing Modes | |
| Operating modes | Weight dosing and piece counting |
| Weight dosing range | 0.2–20 g |
| Weighing readability | 0.01 g |
| Piece counting | From 1 piece |
| Feeding System | |
| Hopper | Vibrating hopper with conical bowl and vibrating tray (series connected) |
| Bunker volume | Up to 16 cm³ (optional 53 cm³) |
| Sensors & Control | |
| Sensors | Optical sensor + weight sensor |
| Control | Remote programmable control panel |
| Performance | |
| Capacity | Up to 15 doses/min (10 seeds/dose); ~6 packages/min practical output |
| Applications | |
| Agriculture | Seeds of all fractions |
| Pharmaceuticals | Pills, capsules, granules |
| Industry | Small parts & hardware |
| Terms | |
| Warranty | 12 months |
Advantages & Applications
Conical vibrating bowl
Gradual product feeding, prevents sticking and double counting, minimizes jamming.
High counting accuracy
Optical separation ensures seeds and pills are counted individually.
Wide application
Agriculture (seeds), Pharmaceuticals (pills, capsules), Small parts & hardware.
Stable operation note
For micro-dosing (0.1–0.2 g), anti-vibration installation is recommended to avoid error.

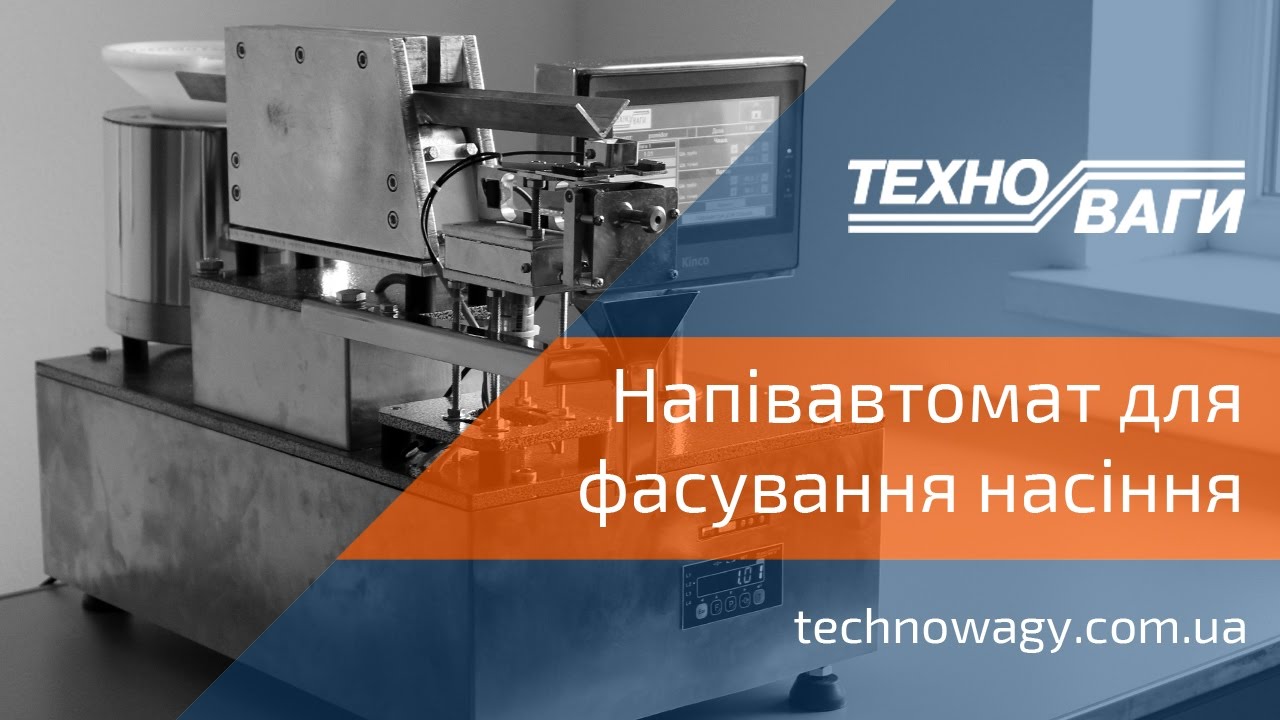

Machine in Action
Watch Semi-Auto Machine in Action
