Automatic Packaging Equipment

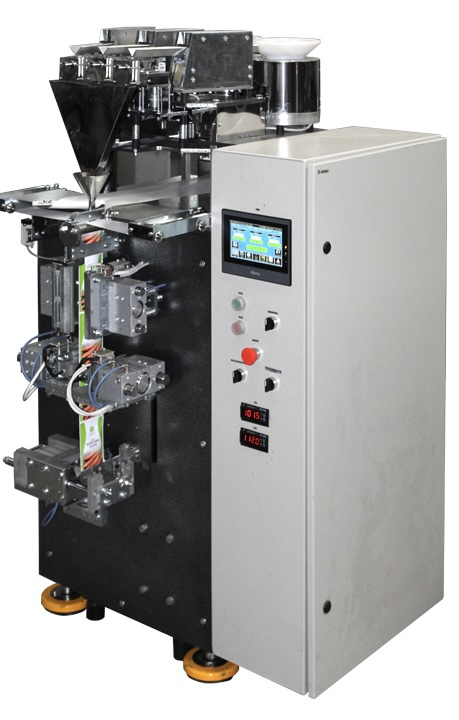

Sachet Packaging Machine TDA for dosing and packaging seeds in sealed sachets formed from roll material
Professional machine for dosing and packaging seeds in sealed sachets formed from material on a roll.
From $42,000
Request a Quote
Technical Specifications
| TDA — Technical Data | |
|---|---|
| Dosing | |
| Dosing Type | Volumetric, weight, counting or combined |
| Compatible Materials | Polypropylene, cellophane, laminated or multi-layer films |
| Weight dosing range | From 0.1 g to 20 g |
| Discreteness (accuracy) | 0.01 g |
| Counting dosing | From 1 pc. (for seeds sized from 0.5 mm) |
| Performance | |
| Productivity | Up to 45 packs / min |
| Accuracy | High-precision weighing system from leading manufacturer NPP "Technowagy" |
| Components | |
| Pneumatical Equipment | Festo |
| Electrical equipment | Siemens |
| Optics | Omron |
| Control System | Intuitive touch display (support for English, German, Polish, and many other languages) |
| Packaging Cycle | |
| Step 1 | Unwinding and feeding of roll material |
| Step 2 | Package forming (pillow bag, sachet, euro-slot) |
| Step 3 | Dosing and filling |
| Step 4 | Heat sealing of seams |
| Step 5 | Cutting and discharging finished package |
| Terms | |
| Warranty | 12 months |
| Service | Post-warranty service, CE certificate |
Available Doser Modifications
Volumetric
For standard bulk fractions.
Weight
From 3 to 6 streams — for maximum portion accuracy.
Counting
From 3 to 6 streams — for packaging seeds by quantity.
Combined
Choosing the dosage by weight or by seed count.
